    The TKC-BR series open loop mode current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit .It provides accurate electronic measurement of DC, AC or pulsed currents.


    Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)


    Type

    Parameter
    TKC50BRTKC75BRTKC100BRTKC200BRTKC300BRTKC400BRTKC500BRTKC600BR

    Unit


    Rated input
    ±50±75±100±200±300±400±500±600A

    Measure range
    ±150±225±300±600±900±900±900±900A

    Rated output
    @Ip=±Ipn ±4±1%V

    Supply voltage
    ±15 ±5%V

    Consumption

    +18,-10mA

    Offset voltage
    ±25mV

    Magnetic offset
    ±30±25 @Ip=±IpnmV

    Offset drift
    ≤±1.5≤±1.0mV/℃

    output drift
    ≤±1.5≤±1.0mV/℃

    Linearity
    @Ip=0-±Ipn ≤1%FS

    Response time
    @50A/μS, 10%-90% ≤3μS

    Galvanic isolation
    @ 50HZ,AC,1min 2.5KV

    Wire length

    650~750mm

    Applications


    AC variable speed drives

    Static converters for DC motor drives

    Variable speed drives

    Power supplies for welding applications

    Battery supplied applications

    Uninterruptible Power Supplies (UPS)

    Switched Mode Power Supplies(SMPS)


    Mechanical dimension(for reference only)


    Remarks:

    1. All dimensions are in mm.

    2. General tolerance ±1mm.


    Directions for use


    When the current will be measured goes through a sensor, the voltage will be measured at the output end.

    (Note: The false wiring may result in the damage of the sensor)

    Customs can adjust Output amplitude of the sensor by needs.

    Custom design in the different rated input current and the output voltage are available.


    Standards


    • UL94-V0.
    • EN60947-1:2004
    • IEC60950-1:2001
    • EN50178:1998
    • SJ 20790-2000

    General date


    ValueUnitSymbol
    Operating temperature-40 to +85ºCTA
    Storage temperature-40to +125ºCTS
    Mass(approx)80gM

    Characteristics chart


    Pulse current signal response characteristic Effects of impulse noise

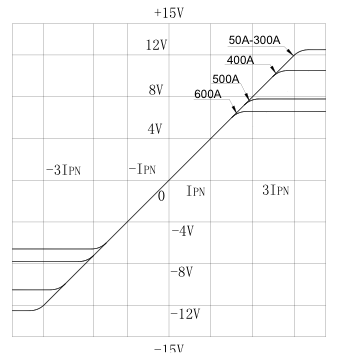

    Input current-Output Voltage characteristic
