Blue Hall Effect Current Sensor Transducer , Hall Effect Dc Current Transducer
The TKC-BSR565 series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC,AC or pulsed currents.
Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)
| Type Parameter | TKC50 BSR565 | TKC100 BSR565 | TKC200 BSR565 | TKC300 BSR565 | TKC400 BSR565 | TKC500 BSR565 | TKC600 BSR565 | Unit |
Rated input | ±50 | ±100 | ±200 | ±300 | ±400 | ±500 | ±600 | A |
Measure range | ±150 | ±300 | ±600 | ±900 | ±900 | ±900 | ±900 | A |
Rated output | @Ip=±Ipn ±0.625±1% | V | ||||||
Zero voltage | @Ip=0 2.5±0.5% | V | ||||||
Reference voltage | 2.5±0.5% | V | ||||||
Supply voltage | +5±5% | V | ||||||
Power Consumption | ≤15 | mA | ||||||
Zero offset voltage | ≤±20 | mV | ||||||
Magnetic offset | ±15 | ±10 | mV | |||||
Offset drift | ≤±1.0 | ≤±0.5 | mV/℃ | |||||
output drift | ≤±1.0 | ≤±0.5 | mV/℃ | |||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | ||||||
Response time | @50A/μS, 10%-90% ≤3 | μS | ||||||
Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV | ||||||
Applications
AC variable speed drives
Static converters for DC motor drives
Variable speed drives
Power supplies for welding applications
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies(SMPS)
Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
Directions for use
When the current will be measured goes through a sensor, the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor)
Customs can adjust Output amplitude of the sensor by needs.
Custom design in the different rated input current and the output voltage are available.
Standards
General date
| Value | Unit | Symbol | |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 65 | g | M |
Characteristics chart

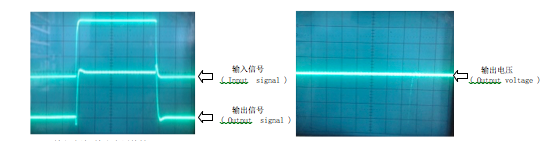

Pulse current signal response characteristic Effects of impulse noise
Input current-Output Voltage characteristic
|
|
