The TBC- BA/BS/BR series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
| Electrical data(Ta=25℃±5℃) |
Type
| TBC50 BA/BS/BR | TBC100 BA/BS/BR | TBC150 BA/BS/BR | TBC200 BA/BS/BR | TBC300 BA/BS/BR | Unit |
Rated input (Ipn) | 50 | 100 | 150 | 200 | 300 | A |
Measure range(Ip) | 150 (±18V,90Ω) | 300 (±18V,30Ω) | 450 (±18V,20Ω) | 600 (±18V, 15Ω) | 900 (±18V,5Ω) | A |
Turns ratio(Np/Ns) | 1:1000 | 1:1000 | 1:1500 | 1:2000 | 1:3000 | T |
Rated output(Isn) | 50±0.5% | 100±0.5% | 100±0.5% | 100±0.5% | 100±0.5% | mA |
Coil resister @70℃ | 25 | 20 | 30 | 35 | 50 | Ω |
Measure resister | 5～100 | Ω | ||||
Supply voltage | ±12 ～±18 | V | ||||
| Power consumption | ≤20+IpX(Np/Ns) | mA | ||||
Zero offset | @Ip=0 ≤±0.15 | mA | ||||
Zero drift | @ -40～+85℃ ≤±0.4 | mA | ||||
Linearity | @Ip=0-±Ipn ≤0.1 | %FS | ||||
Bandwidth | @ -1dB 0～150 | KHZ | ||||
Response time | @100A/μS,10%-90% ≤1 | μS | ||||
Galvanic isolation | @ 50HZ,AC,1min 3 | KV | ||||
| Applications |
AC variable speed drives
Static converters for DC motor drives
Variable speed drives
Power supplies for welding applications
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies(SMPS)
| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
| Directions for use |
When measure current flows according to the direction of the arrowhead, Output terminal gets the same phase current.
When the current will be measured goes through a sensor, the current will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.,
Standards
| General date |
| Value | Unit | Symbol | |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 40 | g | M |

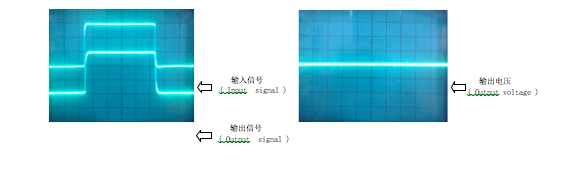

| Characteristics chart |
Pulse current signal response characteristic Effects of impulse noise
|
|
