Non Contact Hall Effect Dc Current Sensor / High Current Hall Effect Sensor
The TKC-HAT series current sensor series is a open loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit, It provides accurate electronic measurement of DC, AC or pulsed currents.
| Electrical data (Ta=25℃±5℃,RL=2KΩ,CL=10000PF) |
| Type Parameter | TKC 200HAT | TKC 400HAT | TKC 500HAT | TKC 600HAT | TKC 750HAT | TKC 800HAT | TKC 1000HAT | TKC 1200HAT | TKC 1500HAT | Unit |
| Rated input (Ipn) | ±200 | ±400 | ±500 | ±600 | ±750 | ±800 | ±1000 | ±1200 | ±1500 | A |
| Measure range(Ip) | ±600 | ±1200 | ±1500 | ±1800 | ±2250 | ±2400 | ±3000 | ±3000 | ±3000 | A |
| Rated output | @ IP=±IPN ±4±1% | V | ||||||||
| Supply voltage | ±15 ±5% | V | ||||||||
Consumption current | @ Is=0 +28,-15 | mA | ||||||||
| Offset voltage | ≤±20 | mV | ||||||||
| Magnetic offset | @ IP=±IPN -0 ±15 | mV | ||||||||
| Offset drift | ≤±1.0 | mV/℃ | ||||||||
| output drift | ≤±1.0 | mV/℃ | ||||||||
| Linearity | @ IP=0-±IPN ≤1 | %FS | ||||||||
| Response time | @50A/μS, 10%-90% ≤5 | μS | ||||||||
Bandwidth | @ -3dB DC-25 | KHz | ||||||||
| Galvanic isolation | @ 50HZ/60HZ,AC,1min 3 | KV | ||||||||
Isolation resistance | @ DC 500V 1000 | MΩ | ||||||||
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
| Directions for use |
When the current will be measured goes through a sensor, the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor)
Customs can adjust Output amplitude of the sensor by needs.
Custom design in the different rated input current and the output voltage are available.
Standards
| General date |
| Value | Unit | Symbol | |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40to +125 | ºC | TS |
| Mass(approx) | 290 | g | M |
| Characteristics chart |

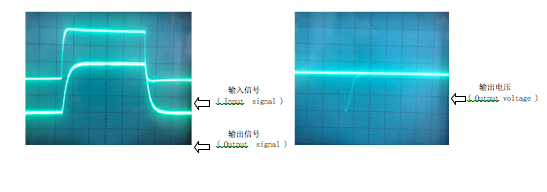

Pulse current signal response characteristic Effects of impulse noise
|
|
