    UPS Hall Effect Voltage Sensor Ac Voltage Transducer TBV-ADA12/24 Series


    TBV-ADA12/24 series hall effect voltage transmitter is the measuring principle of the hall effect ,with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC,AC or pulsed currents.


    Electrical data(Ta=25℃±5℃)



    Type
    Parameter

    TBV50

    ADA12/24

    TBV100

    ADA12/24

    TBV200

    ADA12/24

    TBC300

    ADA12/24

    TBV400

    ADA12/24

    TBV500

    ADA12/24


    Unit


    Rated input (AC Vpn)
    50100200300400500V

    Measure range(AC Vp)
    1002004006008001000V

    Rated output (DC Isn)
    4~20(0-20)mA

    Turns ratio(Np/Ns)

    3333:1000T

    Rated input(Ipn)
    3.0mA

    Supply voltage
    12/24±5%V

    Consumption current
    20+IpX(Np/Ns)+ IsnmA

    Zero current
    4(0)±0.2mA

    Offset current drift
    @ -40℃~+85℃ ≤±0.005mA/℃

    Linearity
    @Vp=0-±Vpn ≤0.2%FS

    Response time
    ≤20mS

    Bandwidth
    20~10000KHZ

    Galvanic isolation
    @ 50HZ,AC,1min 2.5KV

    Applications


    AC variable speed drives and servo motor drives

    Static converters for DC motor drives

    Variable speed drives

    Power supplies for welding applications

    Battery supplied applications

    Uninterruptible Power Supplies (UPS)

    Switched Mode Power Supplies(SMPS)

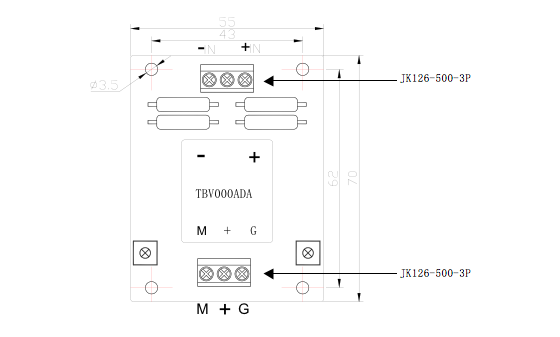

    Mechanical dimension(for reference only)

    Remarks:

    1. All dimensions are in mm.

    2. General tolerance ±1


    Directions for use

    When the current will be measured goes through a transmitter, the current will be measured at the output end.

    (Note: The false wiring may result in the damage of the transmitter).

    Customs can adjust output amplitude of the transmitter by needs.

    Custom design in the different rated input current and the output voltage available.


    Standards


    • UL94-V0.
    • EN60947-1:2004
    • IEC60950-1:2001
    • EN50178:1998
    • SJ 20790-2000

    General date


    ValueUnitSymbol
    Operating temperature-40 to +85ºCTA
    Storage temperature-40 to +125ºCTS
    Mass(approx)43gM
