    TBV-LV Hall Effect Voltage Sensor Dc Voltage Transducer Blue And Black

    TBV-LV Hall Effect Voltage Sensor Dc Voltage Transducer Blue And Black


    TBV-LV series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit, It provides accurate electronic measurement of DC,AC or pulsed voltage.


    Electrical data(Ta=25℃±5℃)


    Type

    Parameter

    TBV

    100LV

    TBV

    200LV

    TBV

    300LV

    TBV

    500LV

    TBV

    1000LV

    TBV

    2000LV

    TBV

    3000LV

    TBV

    4000LV


    Unit


    Rated input (Vpn)
    1002003005001000200030004000V

    Measure range(Vp)
    20040060010002000400060006000V

    Total input consumption

    0.250.500.751.252.55.07.510W

    Rated input (Ip)

    2.5mA

    Turns ratio(Np/Ns)

    20000:1000T

    Secondary coil resister

    @ +85℃ 55Ω

    Rated output (Isn)
    @Vp=±Vpn ±50±0.5%mA

    Resister measured

    @ ±15V VPN 50(min), 200(max)Ω
    @ ±15V 2XVPN 0(min), 100(max)Ω
    @ ±24V VPN 100(min), 330(max)Ω
    @ ±24V 2XVPN 100(min), 200(max)Ω

    Supply voltage
    ±15 - ±24V

    Consumption current
    20+IpX(Np/Ns)mA

    Offset current
    @ Vp=0 ≤±0.2mA

    Offset drift
    @ -40~+85℃ ≤±0.6mA

    Linearity
    @ Vp =0-±Vpn ≤0.1%FS

    Response time
    ≤200uS

    Galvanic isolation
    @ 50HZ,AC,1min Between primary and secondary + shield 12.0KV
    @ 50HZ,AC,1min Between secondary and shield 2.0KV

    Applications


    Variable speed drives

    Power supplies for welding applications

    Battery supplied applications

    Uninterruptible Power Supplies (UPS)

    Switched Mode Power Supplies(SMPS)

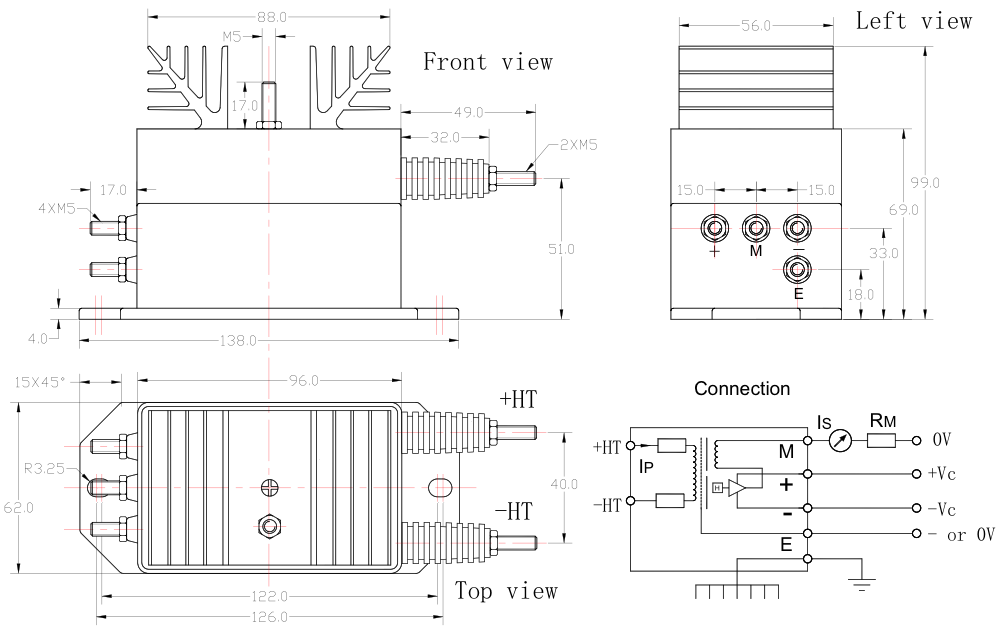

    Mechanical dimension(for reference only)

    Remarks:

    1. All dimensions are in mm.

    2. General tolerance ±1mm


    Directions for use

    Is is positive when the Ip is applied to the terminal +HT. Temperature of the primary conductor should not exceed 100℃.

    When the voltage will be measured goes through a sensor, the current will be measured at the output end.

    (Note: The false wiring may result in the damage of the sensor)

    Custom design in the different rated input voltage and the output current available.


    Standards


    • UL94-V0.
    • EN60947-1:2004
    • IEC60950-1:2001
    • EN50178:1998
    • SJ 20790-2000

    General date


    ValueUnitSymbol
    Operating temperature-40 to +85ºCTA
    Storage temperature-40 to +125ºCTS
    Mass(approx)43gM

    Effects of impulse noise
