    TBC- TP Closed Loop Hall Current Sensor 20A-100A Input High Precision

    TBC- TP Closed Loop Hall Current Sensor 20A-100A Input High Precision


    The TBC- TP series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.


    Electrical data(Ta=25℃±5℃)

    Type


    Parameter

    TBC025TPTBC50TPTBC100TPTBC125TPTBC200TPUnit

    Rated input(Ipn)
    2550100125200A

    Measure range(Ip)
    75(±18V,
    180Ω)
    150(±18V,
    80Ω)
    300(±18V,
    68Ω)
    375(±18V,
    15Ω)
    600(±18V,
    10Ω)
    A

    Turnsratio(Np/Ns)
    1:10001:10001:20001:10001:2000

    Coil resister
    45.0030.0045.0030.0045.00Ω

    Rated output(Is)
    25±0.5%50±0.5%50±0.5%125±0.5%100±0.5%mA

    Supply voltage
    ±12~±18V
    Power consumption≤20+IpX(Np/Ns)mA

    offset current
    @Ip=0 ≤±0.2mA

    Offset current drift
    @ -40~+85℃ ≤±0.5mA

    Linearity

    @Ip=0-±Ipn ≤0.1%FS

    Bandwidth
    @ -3dB 0~200KHz

    Response time
    @100A/μS,10%-90% ≤1µs

    Galvanic isolation
    @ 50HZ,1min 3.0KV

    Applications

    AC variable speed drives and servo motor drives

    Static converters for DC motor drives

    Variable speed drives

    Power supplies for welding applications

    Battery supplied applications

    Uninterruptible Power Supplies (UPS)

    Switched Mode Power Supplies(SMPS)

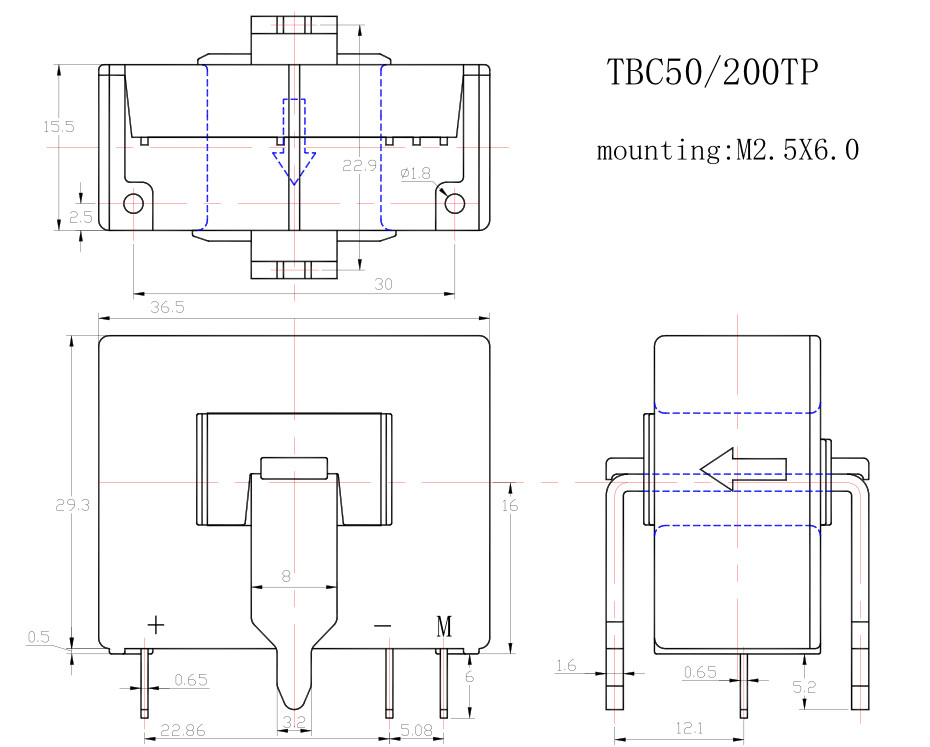

    Mechanical dimension(for reference only)

    TBC- TP Closed Loop Hall Current Sensor 20A-100A Input High Precision

    Remarks:

    1. All dimensions are in mm.

    2. General tolerance ±1mm.


    Directions for use

    When measure current flows according to the direction of the arrowhead, Output terminal gets the same phase current.

    The primary conductor should be≤120℃.


    When the current will be measured goes through a sensor, the voltage will be measured at the output end.

    (Note: The false wiring may result in the damage of the sensor)


    Custom design in the different rated input current and the output current are available.


    Standards


    • UL94-V0.
    • EN60947-1:2004
    • IEC60950-1:2001
    • EN50178:1998
    • SJ 20790-2000

    General date

    ValueUnitSymbol
    Operating temperature-40 to +85ºCTA
    Storage temperature-40 to +125ºCTS
    Mass(approx)40gM

    Characteristics chart

    Pulse current signal response characteristic Effects of impulse noise

    TBC- TP Closed Loop Hall Current Sensor 20A-100A Input High Precision
