Common Accuracy Hall Effect Dc Current Sensor TBC-LTA Series Custom-made,two type of connector for choose.
The TBC-LTA Series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method , with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor, It can really measure resolution 1000:1 and uses for precision measurement of DC, AC and pulse current.
| Electrical data(Ta=25℃±5℃) |
Type
| TBC100LTA | TBC200LTA | TBC300LTA | Unit |
Rated current(Ipn) | 100 | 200 | 300 | A |
Measure range(Ip) | 300(±18V,56Ω) | 600(±18V,.0Ω) | 900(±18V,2.0Ω) | A |
Turns ratio(Np/Ns) | 1:2000 | 1:2000 | 1:3000 | |
with ±12V | @±100Amax 150(max) | @±200Amax 50(max) | @±300Amax 50(max) | Ω |
| @±200Amax 50(max) | @±400Amax 5.0(max) | @±600Amax 2.0(max) | Ω | |
Rated output (Isn) | ±50±0.5% | ±100±0.5% | ±100±0.5% | mA |
| Supply voltage | ±12～±18 | V | ||
| Power consumption | ≤20+Ip(Np/Ns) | mA | ||
| Offset current | @Ip=0 ≤±0.2 | mA | ||
| Offset drift | @ -40℃～85℃ ≤±0.5 | mA | ||
Response time | @100A/μS,10%-90% ＜1.0 | µs | ||
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS | ||
Galvanic isolation | @ 50HZ,AC,1min 6 | KV | ||
| di/dt | ＞100 | A/µs | ||
| Bandwidth | @ -3db DC…150 | KHz | ||
| Applications |
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Frequency converter

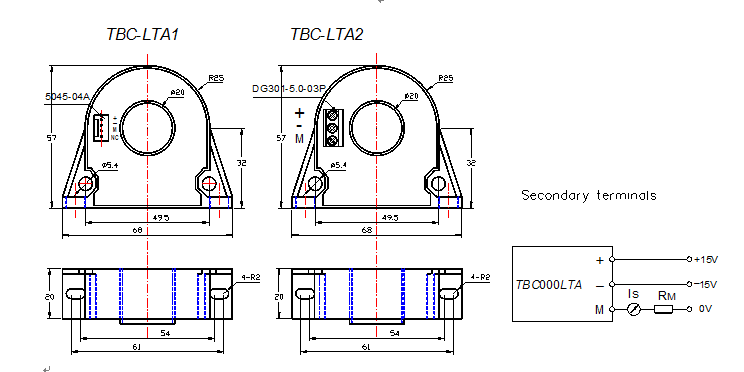

| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm
| Directions for use |
Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
Standards |
| General date |
| Value | Unit | Symbol | |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 100 | g | M |
| Characteristics chart |
Pulse current signal response characteristic Effects of impulse noise
|
|
