    2000A Closed Loop Hall Effect Sensor Aperture Mounting


    Accuracy 0.2% measure Current 10-2000A Closed Loop Hall Effect Sensor For Energy Storage Converter use​


    TBC2000LFA/B high accuracy Closed Loop Hall Effect Current Sensor


    The TBC2000LF current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method ,with a galvanic isolation between primary and secondary circuit, the size of primary not affect test precision, no matter the location of primary in the hole of current sensor, It can really measure resolution 1000:1 and it uses for precision measurement of DC, AC and pulse current.


    TBC2000LF high precision Closed Loop Hall Effect Current Sensor Electrical data(Ta=25℃±5℃)


    Type

    Parameter

    TBC2000LF

    单位

    Unit


    Rated input Ipn)
    20-2000A

    Measure range(Ip)
    3000(±24V, 3.0Ω)A

    Measure resister
    with±15V @±2000Amax 0(min) 1.0(max)Ω
    with±24V @±2000Amax 0(min) 20(max)Ω
    with±24V @±3000Amax 0(min) 3.0(max)Ω

    Turns ratio(Np/Ns)

    1:5000T

    coil resister
    @ 85℃ 34Ω

    Rated output (Isn)
    4(20A)-400(2000A)±0.2%FSmA

    Supply voltage
    ±15~±24V

    Power consumption

    ≤20+IpX(Np/Ns)mA

    Zero offset current
    @Ip=0 ≤±0.2mA

    Offset current drift
    @ -40℃~85℃ ±0.5mA

    Response time
    @100A/μS,10%-90% <1μs

    Linearity
    @Ip=0-±Ipn ≤0.1%FS

    Galvanic isolation
    @ 50HZ, AC, 1min 6KV

    di/dt accurately followed

    >100A/μs

    Bandwidth
    @ -3dB DC…150KHz


    TBC2000LF high precision Closed Loop Hall Effect Current Sensor Applications



    AC variable speed drives and servo motor drives

    Static converters for DC motor drives

    Battery supplied applications

    Uninterruptible Power Supplies (UPS)

    Switched Mode Power Supplies (SMPS)

    Power supplies for welding applications.

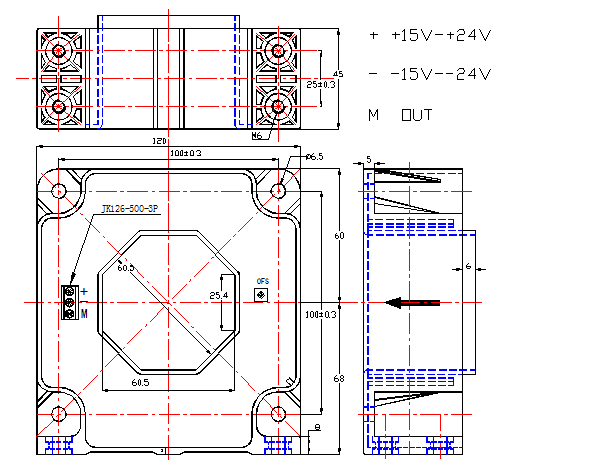

    TBC2000LF high precision Closed Loop Hall Effect Current Sensor Mechanical dimension(for reference only)



    Remarks:

    1. All dimensions are in mm.

    2. General tolerance ±1mm.



    TBC2000LF high precision Closed Loop Hall Effect Current Sensor Directions


    Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.

    The primary conductor should be≤120℃.

    The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.


    TBC1000LF high precision Closed Loop Hall Effect Current Sensor Standards

    • UL94-V0.
    • EN60947-1:2004
    • IEC60950-1:2001
    • EN50178:1998
    • SJ 20790-2000

    TBC1000LF high precision Closed Loop Hall Effect Current Sensor General date


    ValueUnitSymbol
    Operating temperature-40~+85ºCTA
    Storage temperature-40~+125ºCTS
    Mass(approx)1820gM


    TBC2000LF high precision Closed Loop Hall Effect Current Sensor Characteristics chart


    Pulse current signal response characteristic Effects of impulse noise


    Input signal/Output signal Output voltage
